Oil level Sight Glass.

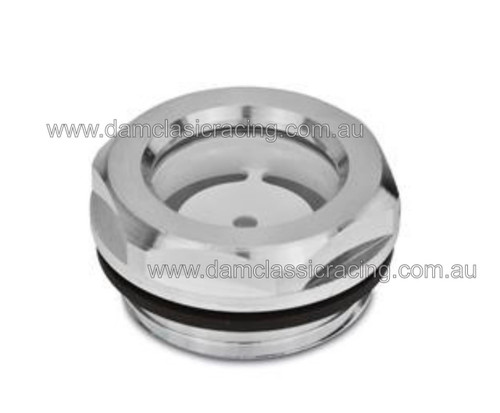

GN743.1 Oil Level Sight Glass, Aluminium & ESG Glass

These oil level sight glasses offer scratch proof glass with high stability. The sealing is achieved with an O-ring on the periphery and not on the face edge of the glass. Leak tightness is therefore not affected by axial pressures.

The seal is housed in a groove and it can therefore not be lost. In addition, this groove prevents the seal from being extruded when the sight glass is tightened. The location of this seal allows also the use of a softer Elastomer which guarantees better and easier sealing.

The outside diameter of these oil level sight glasses with recessed hexagon is designed to match mounting holes for tube connections according to DIN 3852.

Oil level sight glasses GN 743.1 can be used on pressurised oil tanks. Tests regarding maximum pressure are available on request.

Specification

• Body - Aluminium AL, fine turned.
• • Plain for Type A / B
  • Black anodized for Type AS / BS
• Reflector- Plastic (Polyethersulfone PESU).
• Sight Glass - ESG glass, temperature resistant up to 180 °C.
• Sealing Ring - Fluorine rubber FKM, identification by dark grey finish of the seal.
