Length 362mm eye to eye.

These shocks will fit

7614-1397 A slightly higher performance version of the 7610, the 7614 shocks feature lightweight aluminum twin-tube design utilizing screw thread collars for fine adjustment of spring preload over a wide range.

The 7614 features a 4-position adjustment for rebound damping, is gas charged, and uses progressive springs.

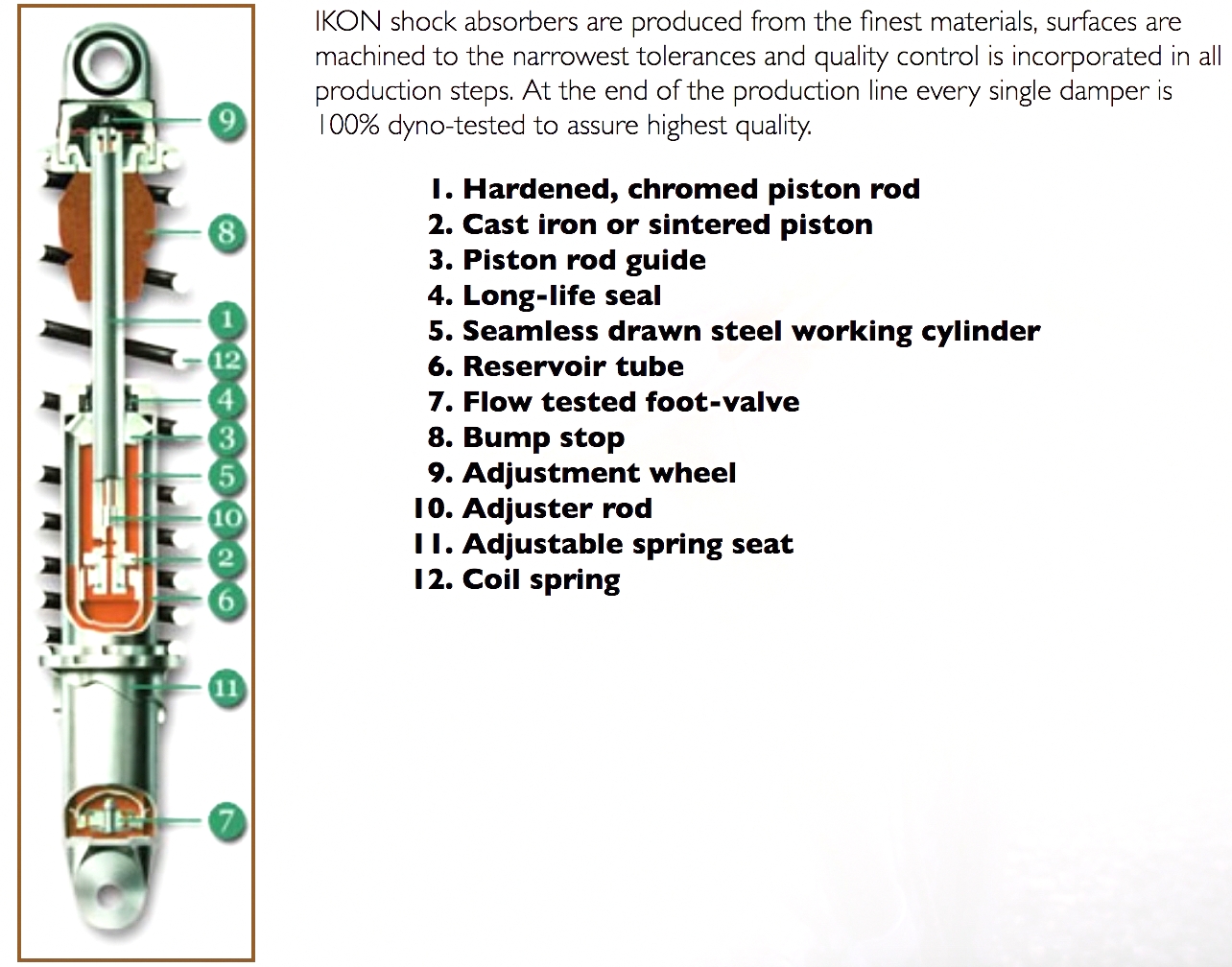

Like all Ikon shocks these are fully rebuildable and revalveable. These 7614-series shocks have a natural aluminum body with Black springs.

IKON shocks to suit any twin shock motorcycle can be made individually to order at no extra cost. Please CONTACT US.

Product photos shown are representative for trim combinations, and the specific eye or clevis mounts and length for your bike may not be shown.
