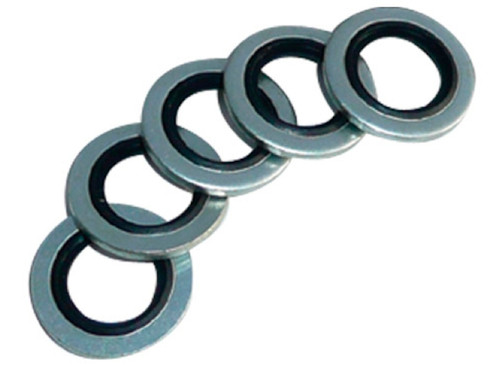

Bonded sealing Washer.

Suitable for motorcycle forks to secure the lower dampening rod.

A metal washer bonded to rubber, bonded washers (aka Dowty washers) are used to prevent leakage of media through fasteners of hydraulic fittings, pipe join flanges and valve bodies. A bonded washer consists of a flat metal ring with rubber bonded to the internal diameter that is wider than the metal washer. As the bolt or fitting is tightened, it compresses the rubber seal element until fully tightened upon the metal ring creating an efficient high pressure seal.

• Galvanised steel, blue passivated (A2K)
• Steel washer with moulded-on rubber sealing lip; for sealing bolt heads (primarily used with metric hexagon bolts in accordance with German DIN standard) and flange connections.
• For high pressure, vacuum and broad temperature ranges.
• Optimum sealing effect due to precisely defined lip formation.
• No pressing out, even under extreme pressure conditions thanks to metal-metal contact.
• Minimal tightening torque
• No retightening of installed seal
• Replaces other previously used seals
• Can be used several times
• Quick, easy and reliable installation.
• Overhead installation possible
• No special machining of metal surface required.
• Temperature resistant from –35°C to +120°C
• Hardness of rubber seal: 65–75 Shore

Suitable for screw	M8
Internal diameter (d1)	8 mm
Outer diameter (d2)	14 mm
Thickness (h1)	1 mm
Material	Steel
Shore A hardness	70 +/- 5
Surface	Zinc plated
Min./max. temperature resistance	-35 to 120 °C
Through-hole according to DIN 69 f	8.4 mm
Through-hole according to DIN 69 m	9 mm
