Brand: Electrex UK

Type: SHUNT - SINGLE PHASE

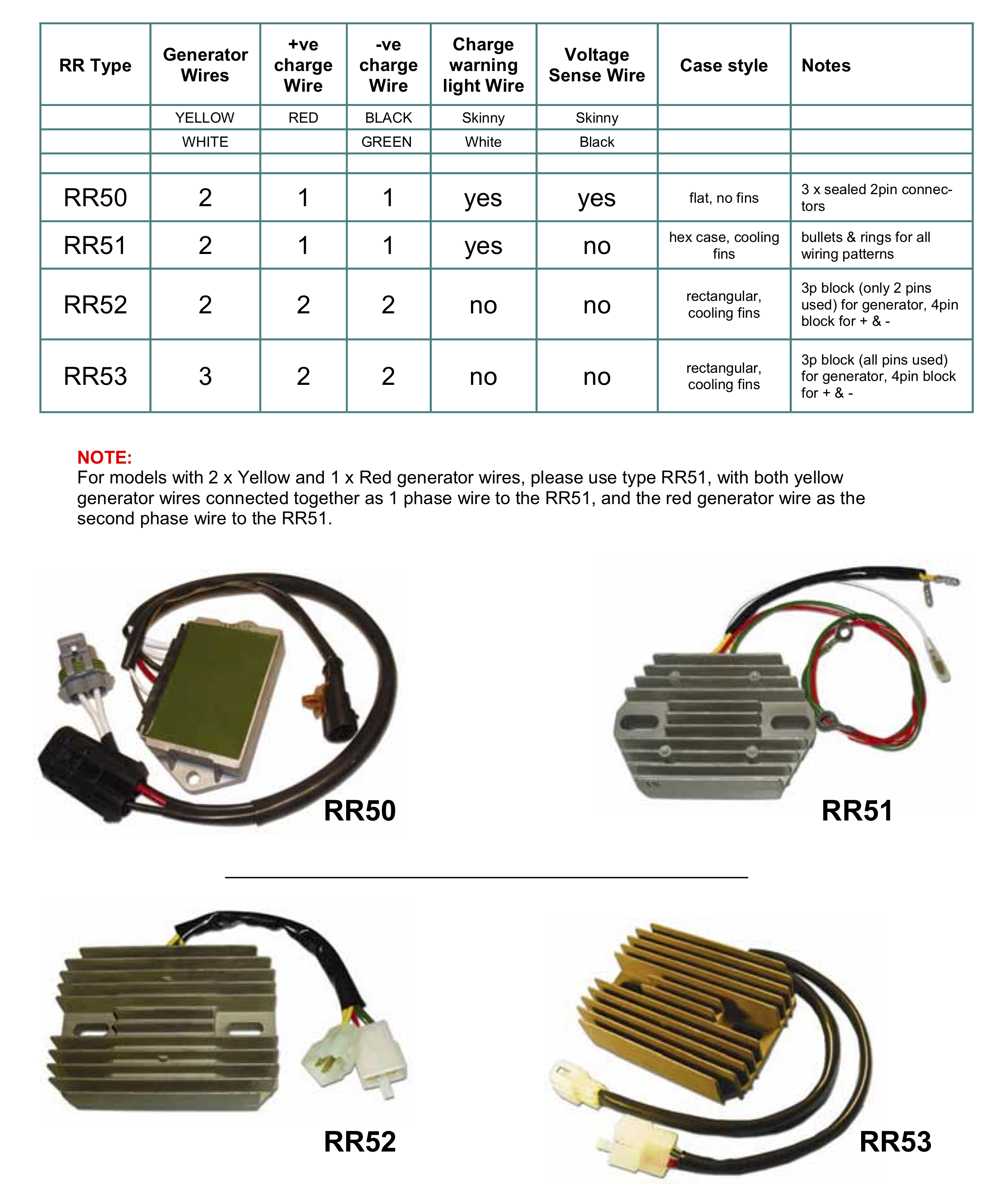

Wire colours: 2 x yellow | 1 x red | 1 x green | 1 x white

IMPORTANT:
This regulator/rectifier MUST NOT be used with Lithium-ion batteries
BATTERY TYPES TO USE WITH REGULATOR/RECTIFIERS

ONLY Lead Acid Liquid electrolyte (acid + distilled water) Sealed Glass mat types – modern version

Cyclon cell
NOT Lithium-ion (Li-ion) or any other Lithium chemistry

NOT Nickel Cadmium (Ni-Cd), Nickel Metal Hydride (NiMH) or any other types now or in the future

WHY ONLY LEAD ACID?

These have been used for over 100 years for automotive and motorcycle applications. Motorcycles are usually supplied with them from new and like the OEM regulator/ rectifier was only designed to work with lead acid batteries.

Note Battery capacity Ah needs matching to the output of the charging system so do not use a car battery for any motorcycle or large motorcycle battery with a low output charging system.

WHY NOT LITHIUM-ION?

Requires very careful control of charging current and voltage – constant current with steady increase of voltage. Motorcycle charging systems have a wide range of voltage and current input completely unsuitable for Li-ion type. To overcome this problem manufacturers of Li-ion batteries for motorcycles have built in control electronics - but these are highly variable in operation and quality.

Lithium-ion batteries do not accept overcharge or either excessive current when charged or continued charging when fully charged. This can result in serious damage to the battery and consequential damage to the regulator/rectifier, worst case the battery can catch fire or even explode.

Lithium-Ion batteries are not suitable for trickle charging.

With many varying environmental conditions which motorcycles are used; it is worth noting that Li-ion batteries will not charge below 0°c.

All warranty is void and we accept no liability for any damage or injury caused if a Lithium-ion battery, Nickel Cadmium (Ni-Cd), Nickel Metal Hydride (NiMH) or any other type other than lead acid now or in the future, is used.

Fitment:

SUITS

1974-1980 LAVERDA 1000/1200

1994-2000 LAVERDA 650, 668, 750S, 600 Atlas, 650 Ghost, 650IE, 668IE

1973 DUCATI 750SS
1974 DUCATI 750SS
1974 DUCATI 860GT
1975 DUCATI 750SS
1975 DUCATI 860GT
1975 DUCATI 900SS
1976 DUCATI 750SS
1976 DUCATI 860GT
1976 DUCATI 860GTS
1976 DUCATI 900SS
1977 DUCATI 750SS
1977 DUCATI 860GTS
1977 DUCATI 900SD Darmah
1977 DUCATI 900SS
1978 DUCATI 500 Pantah
1978 DUCATI 750SS
1978 DUCATI 860GTS
1978 DUCATI 900SD Darmah
1978 DUCATI 900SS
1979 DUCATI 500 Pantah
1979 DUCATI 900SD Darmah
1979 DUCATI 900SS
1979 DUCATI 900SS Hailwood Replica
1980 DUCATI 500 Pantah
1980 DUCATI 900SD Darmah
1980 DUCATI 900SS
1980 DUCATI 900SS Hailwood Replica
1981 DUCATI 500SL Pantah
1981 DUCATI 600SL Pantah
1981 DUCATI 900SD Darmah
1981 DUCATI 900SS
1981 DUCATI 900SS Hailwood Replica
1982 DUCATI 500SL Pantah
1982 DUCATI 600SL Pantah
1982 DUCATI 600TL Pantah
1982 DUCATI 900SD Darmah
1982 DUCATI 900SS
1982 DUCATI 900SS Hailwood Replica
1983 DUCATI 500SL Pantah
1983 DUCATI 600SL Pantah
1983 DUCATI 600TL Pantah
1983 DUCATI 900 S2
1983 DUCATI 900SD Darmah
1983 DUCATI 900SS
1983 DUCATI 900SS Hailwood Replica
1984 DUCATI 1000 S2
1984 DUCATI 1000SS Hailwood Replica
1984 DUCATI 600SL Pantah
1984 DUCATI 900SS
1984 DUCATI 900SS Hailwood Replica
1985 DUCATI 1000 S2
1985 DUCATI 1000SS Hailwood Replica
1985 DUCATI 600TL
1985 DUCATI 750F1
1985 DUCATI 900SS Hailwood Replica
1986 DUCATI 750 Paso
1986 DUCATI 750F1
1987 DUCATI 650 Indiana
1987 DUCATI 750 Paso
1987 DUCATI 750F1
1988 DUCATI 750 Paso
1988 DUCATI 750 Santa Monica
1988 DUCATI 750F1
1989 DUCATI 750 Paso
1989 DUCATI 750 Sport
1989 DUCATI 906 Paso
1989 DUCATI Superbike 851 Strada
1990 DUCATI 750 Paso
1990 DUCATI 750 Sport
1990 DUCATI 900SS Super Sport
1990 DUCATI 906 Paso
1990 DUCATI Superbike 851 Strada
1991 DUCATI 750SS
1991 DUCATI 900SS Super Sport
1991 DUCATI 906 Paso
1991 DUCATI 907 i.e. Paso
1991 DUCATI Superbike 851 SP 3
1991 DUCATI Superbike 851 Strada
1991 MOTO GUZZI Quota 1000
1991 MOTO GUZZI Quota 1000 Injection
1992 DUCATI 750SS
1992 DUCATI 900 Superlight
1992 DUCATI 900SS Super Sport
1992 DUCATI 907 i.e. Paso
1992 DUCATI Superbike 851 S3 Strada
1992 DUCATI Superbike 851 SP 4
1992 MOTO GUZZI Daytona 1000
1992 MOTO GUZZI Quota 1000
1992 MOTO GUZZI Quota 1000 Injection
1993 DUCATI 750SS
1993 DUCATI 900 Superlight
1993 DUCATI 900SS
1993 DUCATI 907 I.E.
1993 DUCATI Superbike 888 SP5
1993 DUCATI Superbike 888 Strada
1993 MOTO GUZZI Daytona 1000
1993 MOTO GUZZI Nevada 750
1993 MOTO GUZZI Quota 1000
1994 DUCATI 600SS
1994 DUCATI 750SS
1994 DUCATI 750SS C
1994 DUCATI 900 Superlight
1994 DUCATI 900SS / CR
1994 DUCATI M900 Monster
1994 DUCATI Superbike 888 SP0 Strada
1994 DUCATI Superbike 916 Strada
1994 MOTO GUZZI 1000 Strada
1994 MOTO GUZZI 850 T5 Polizia
1994 MOTO GUZZI California 1100
1994 MOTO GUZZI Daytona 1000
1994 MOTO GUZZI Nevada 750
1994 MOTO GUZZI Quota 1000
1995 DUCATI 600SS
1995 DUCATI 750SS
1995 DUCATI 750SS C
1995 DUCATI 900 Superlight
1995 DUCATI 900SS / CR
1995 DUCATI M600 Monster
1995 DUCATI M900 Monster
1995 DUCATI Superbike 748 Biposto / SP
1995 DUCATI Superbike 916 Biposto / Senna
1995 DUCATI Superbike 916 Strada
1995 MOTO GUZZI 750 X Polizia
1995 MOTO GUZZI 850 T5 Polizia
1995 MOTO GUZZI California 1100
1995 MOTO GUZZI Daytona 1000
1995 MOTO GUZZI Nevada 750
1995 MOTO GUZZI Quota 1000
1996 DUCATI 600SS
1996 DUCATI 750SS
1996 DUCATI 750SS C
1996 DUCATI 900SL Superlight
1996 DUCATI 900SS / CR
1996 DUCATI M600 Monster
1996 DUCATI M750 Monster
1996 DUCATI Monster 900
1996 DUCATI Superbike 748 Biposto / SP
1996 DUCATI Superbike 916 Biposto / Senna
1996 MOTO GUZZI 750 X Polizia
1996 MOTO GUZZI 850 T5 Polizia
1996 MOTO GUZZI California 1100
1996 MOTO GUZZI Daytona 1000
1996 MOTO GUZZI Nevada 750
1996 MOTO GUZZI Quota 1000
1996 MOTO GUZZI Sport 1100 Injection
1996 MOTO GUZZI V10 Centauro
1997 DUCATI 600SS
1997 DUCATI 750SS
1997 DUCATI 900SS / CR
1997 DUCATI M600 Monster
1997 DUCATI M750 Monster
1997 DUCATI Monster 900
1997 DUCATI Sport Touring ST2
1997 DUCATI Superbike 748 Biposto / SP
1997 DUCATI Superbike 748 S
1997 DUCATI Superbike 916 Biposto / Senna
1997 DUCATI Superbike 916 SP / SPS
1997 MOTO GUZZI 750 X Polizia
1997 MOTO GUZZI 850 T5 Polizia
1997 MOTO GUZZI California 1100
1997 MOTO GUZZI California EV
1997 MOTO GUZZI Daytona 1000
1997 MOTO GUZZI Ippogrifo V7
1997 MOTO GUZZI Nevada 750
1997 MOTO GUZZI Quota 1000
1997 MOTO GUZZI Sport 1100 Injection
1997 MOTO GUZZI V10 Centauro
1998 DUCATI 600SS
1998 DUCATI M600 Monster
1998 DUCATI Sport Touring ST2
1998 MOTO GUZZI 750 X Polizia
1998 MOTO GUZZI 850 T5 Polizia
1998 MOTO GUZZI California EV
1998 MOTO GUZZI Daytona 1000
1998 MOTO GUZZI Ippogrifo V7
1998 MOTO GUZZI Nevada 750
1998 MOTO GUZZI Quota 1100 ES
1998 MOTO GUZZI Sport 1100
1998 MOTO GUZZI Sport 1100 Injection
1998 MOTO GUZZI V10 Centauro
1998 MOTO GUZZI V11 Sport
1999 MOTO GUZZI 750 X Polizia
1999 MOTO GUZZI 850 T5 Polizia
1999 MOTO GUZZI California EV
1999 MOTO GUZZI California Jackal
1999 MOTO GUZZI California Special
1999 MOTO GUZZI Nevada 750
1999 MOTO GUZZI Quota 1100 ES
1999 MOTO GUZZI Sport 1100
1999 MOTO GUZZI Sport 1100 Injection
1999 MOTO GUZZI V10 Centauro
1999 MOTO GUZZI V11 Sport
2000 MOTO GUZZI 1100 Sport
2000 MOTO GUZZI 750 X Polizia
2000 MOTO GUZZI 850 T5 Polizia
2000 MOTO GUZZI California EV
2000 MOTO GUZZI California Jackal
2000 MOTO GUZZI California Special
2000 MOTO GUZZI Nevada 750
2000 MOTO GUZZI Quota 1100 ES
2000 MOTO GUZZI V10 Centauro
2000 MOTO GUZZI V11 Sport
2001 MOTO GUZZI 750 X Polizia
2001 MOTO GUZZI 850 T5 Polizia
2001 MOTO GUZZI California EV
2001 MOTO GUZZI California Jackal
2001 MOTO GUZZI California Special
2001 MOTO GUZZI Nevada 750
2001 MOTO GUZZI Quota 1100 ES
2001 MOTO GUZZI V10 Centauro
2001 MOTO GUZZI V11 LeMans
2001 MOTO GUZZI V11 Sport
2002 MOTO GUZZI 750 X Polizia
2002 MOTO GUZZI California EV
2002 MOTO GUZZI California Special
2002 MOTO GUZZI Nevada 750
2002 MOTO GUZZI Quota 1100 ES
2002 MOTO GUZZI V11 LeMans
2003 MOTO GUZZI Nevada 750
2003 MOTO GUZZI V11 LeMans
2004 MOTO GUZZI V11 LeMans
