43301003

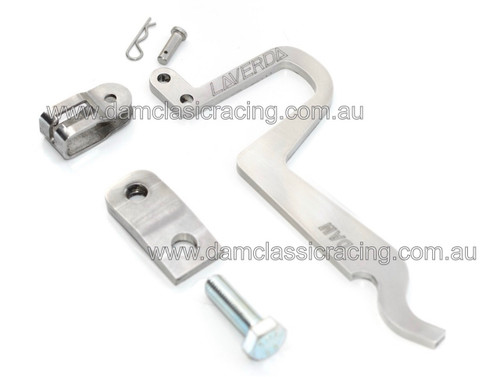

Mk3 version of the DAM Easy Clutch Actuator has a lower profile and incorporates two positions for cable attachment.This is particularly useful to compensate for variations in clutch lever pivot, clutch push-rods or plates. The Kit includes the Cable Hanger (Clevis),  Clevis Pin and R Clip  The original parts are often rusty and filthy with road grime and ancient chain lube.

Manufactured to a design by Greg Parish specifically for the DAM racing bikes in 2004 and to suit standard road bikes. The DAM Laverda Easy Clutch replaces your old clutch actuating lever without the need to cut your precious engine covers
Precision Laser Cut from 316 Stainless Steel the lever is an easy replacement without any modification or special tools required

For a super-light clutch pull on a Laverda and extended cable life
Fits all Breganze Laverda 750cc, 1000cc and 1200cc that use a cable clutch with a round inspection hole in the cover

The Kit includes bolt, cable stand-off, lever, clevis and fittings, and instruction sheet. Currently the DAM Easy Clutch Kit is not supplied with the rubber bung because of short supply.

We recommend to install a new clutch cable and check the handlebar lever pivot for excessive wear

Here are some additional items you might like to have on hand to complete the installation or keep as spare parts

Chain Cover Gasket The chain cover must be removed and the gasket can be damaged

Gear Shift Cover Gasket The Gearshift cover must be removed and the gasket can be damaged

Rubber Neoprene Cable Sleeve Covers the exposed part of the inner cable where it attaches to the clevis.

BE AWARE: AFTERMARKET KEVLAR CLUTCH PLATES. These plates are often thicker than Laverda specification and cause problems with the original Laverda actuating lever binding on its support. On hydraulic clutch systems using a BREMBO PS15 Master cylinder the clutch pack has sometimes been found to make contact with the outer basket circlip on the primary drive side before the lever has completed it's full range of travel. This over-extension creates excessive pressure in the hydraulic system that may cause failure of components including fracture of the alloy hydraulic covers.

On cable operated clutch systems check that a properly adjusted handlebar cable lever pulls all the way into the bar without excessive straining of the cable. If the lever doesn't pull to the bar then look to the Clutch Pack plate thickness before changing the Actuating Lever.
