IMPORTANT: Ignitech CDI ignition modules are most often designed primarily to have its power supplied from a low voltage AC generator, but with variations of this unit it is also possible to be powered from DC 12 V battery supply.
Ignitech produce 3 types of capacitive type ignitions with sub categories according to the bike’s power supply.

• Only DC 12 V powered (need battery) - DCCDI, DCCDIP, DCCDIP2, DCCDIP4
• Low voltage AC generator or DC powered - ADCCDI. ADCCDIP, DCCDIP1 race
• High voltage AC generator powered - ACCDI, ACCDIP

It is important to give as much information about your existing ignition and bike model as possible when ordering.

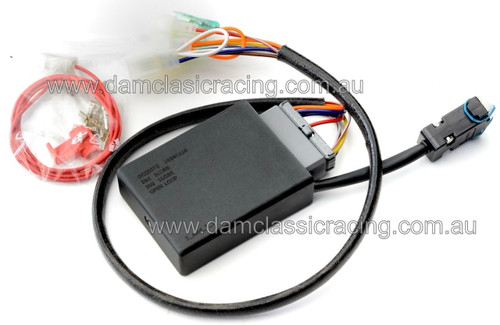

SPARKER DC-CDI-P2
Programmable two channel capacitive ignition for motorbikes supplied by 12 V for 1985 XLV750R. This is a pre-programmed module that replaces both the OEM units and only one extra wire from a switched 12V source is required.

SPARKER DC-CDI-P2 ignition is a programmable two channel capacitive ignition with revolution and TPS regulation of the advance.

SPARKER DC-CDI-P2 ignition is equipped with two inputs for pickup, input for throttle position sensor, two multifunctional switch inputs (for blocking, kill switch, retard), output for tachometer, two multifunction switch outputs (for fuel pump relay, gear shift light), outputs for servomotor.


This ignition is fully programmable by software DCCDIP2.EXE. Software includes advance map or curve, options for blocking, revolution limiter, servo. The DCCDIP2 software is conformable to TCIP4 software.


The ignition unit is in plastic box 85x67x26 mm with 20-pin grey connector. Counterpart connector is available.

5K Ohm Resistor plug caps are required to avoid damage to the Ignition unit.
