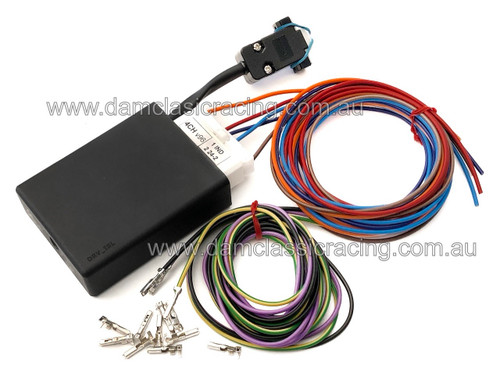

Programmable ignition for KTM 690 that uses an 18 lobe pickup trigger. Designed for converting the engine from fuel injection to carburettor. Includes a pre-programmed ignition curve and plug-and-play basic loose wire connector loom and a corresponding colour coded Wiring Table list.

General TCIP4 Description: This Ignitech SPARKER TCIP4 ignition is equipped with 4 x inputs for pickup. Suitable for 4 cylinder, 120 Degree 3, and 6 cylinders engines or where more than two inputs is desirable.

Input for throttle position sensor or inlet air pressure sensor, two multifunctional switch inputs for blocking, kill switch, retard etc. output for tachometer, two multifunction switch outputs for fuel pump relay, gear shift light etc

This Ignition is fully programmable using Computer Software. Software control includes advance map or curve, options for blocking, rev limiter etc.

A free download is available for the TCIP4 8 page Owners Manual

5K Ohm Resistor plug caps or 'R' type spark plugs (but not both together) are required to avoid damage to the Ignition unit.
