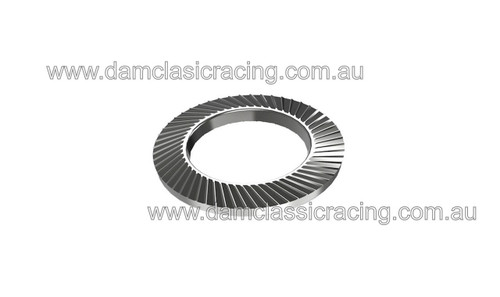

M8 Brake Disc Carrier Schnorr® type Washer [20/Pack]( 33111030 )
$14.30 (inc GST) $13.00 (exc GST)
, <span class="ProductDetailsPriceIncTax">$14.30 (inc GST)</span> <span class="ProductDetailsPriceExTax">$13.00 (exc GST)</span> (https://damclassicracing.com.au/m8-brake-disc-carrier-schnorr-type-washer-20-pack-33111030/))
Product Description
The Original SCHNORR® Safety Washer “VS“ can be used with high-strength bolts of the grade 8.8 -10.9 without any restrictions. This extra strong safety washer has a greater thickness for higher pre-tensioning loads. The outside inside diameter as well and the serrations are the same as the “S“ type.
Original SCHNORR® safety washers are now used world wide where secure fastening connections to counter the effect of vibration are required.
Functional Principle

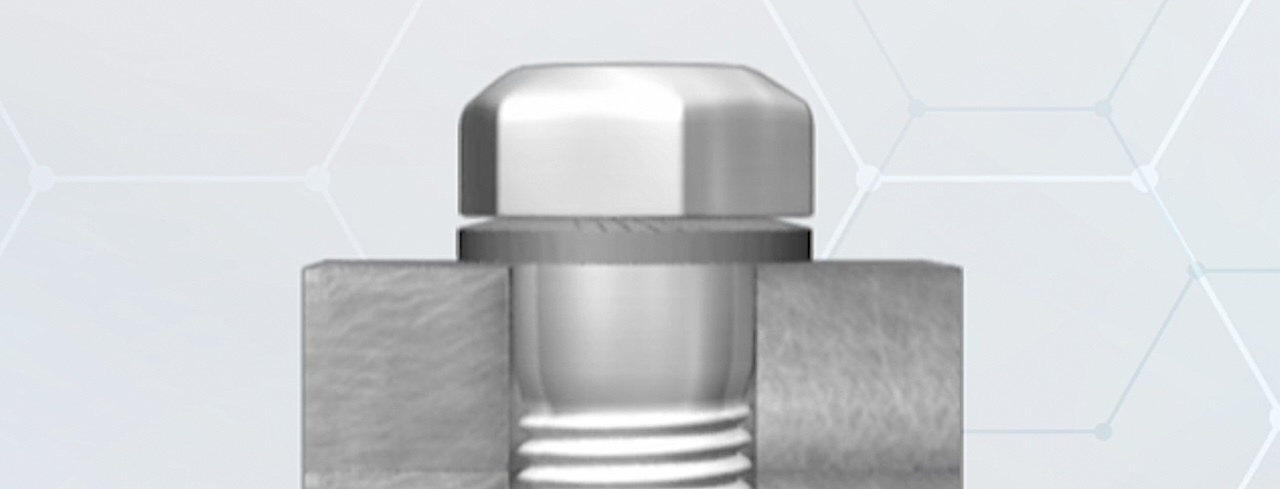

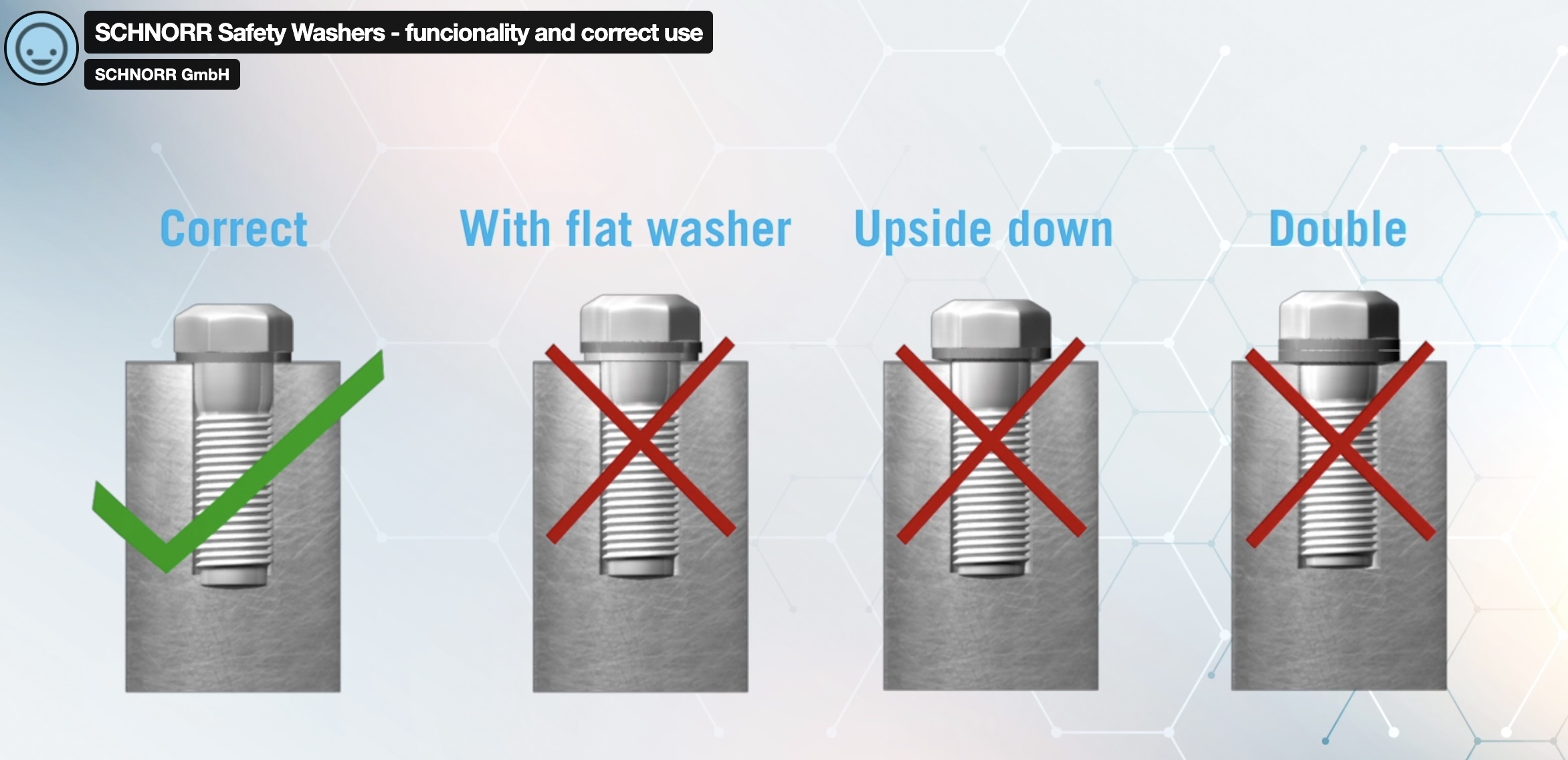

SCHNORR® safety washers are in the form of a disc spring but with a trapezoidal cross-section and serrations on both sides. The outer diameter is matched to the head diameter of the pan head and socket head cap screws.
SCHNORR® safety washers are available in two versions: the standard safety washer type “S” is available for screws of sizes M1.6 to M36 and of the property classes up to 8.8. For screws of property classes 8.8 and 10.9, higher pretension forces might be necessary. These are covered by our reinforced washers type “VS”.
Due to the conical form, optimal traction is achieved at highest positive locking due to the helical gearing.
Specifications
- BrandSchnorr
- Thickness (mm)1.1
- SizeM8
- Outside Diameter (mm)13
- Type Serrated Safety Washer
- FinishZinc Plated
