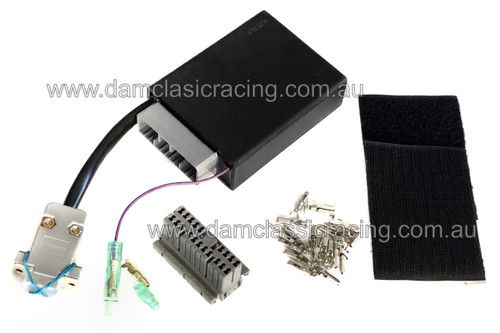

Programmable ignition for Yamaha RZ/RD 500 V4. Includes pre-programmed ignition curve, basic wiring harness and Wiring Codes for YVPS.

SPARKER DC-CDI-P2 ignition is a programmable two channel capacitive ignition with revolution and TPS regulation of the advance for motorcycles with supply voltage 12VDC.

SPARKER DC-CDI-P2 ignition is equipped with two inputs for pickup, input for throttle position sensor, two multifunctional switch inputs (for blocking, kill switch, retard), output for tachometer, two multifunction switch outputs (for fuel pump relay, gear shift light), outputs for servomotor.


This ignition is fully programmable by software DCCDIP2.EXE. Software includes advance map or curve, options for blocking, revolution limiter, servo. The DCCDIP2 software is conformable to TCIP4 software.


The ignition unit is in plastic box 85x67x26 mm with 20-pin grey connector.
