AP Racing CP2195 Lockheed 2 Piston Classic Caliper (CONTACT US FOR AVAILABILITY)
$807.55 (inc GST) $734.14 (exc GST)
AP Racing CP2195 Lockheed 2 Piston Classic Caliper (CONTACT US FOR AVAILABILITY)
$807.55 (inc GST) $734.14 (exc GST)
| This product is available for pre-order only |
, <span class="ProductDetailsPriceIncTax">$807.55 (inc GST)</span> <span class="ProductDetailsPriceExTax">$734.14 (exc GST)</span> (https://damclassicracing.com.au/ap-racing-cp2195-lockheed-2-piston-classic-caliper-contact-us-for-availability/))
Product Description
We sell only genuine AP Racing Products. Beware of aftermarket copies that don't carry the APRacing logo.

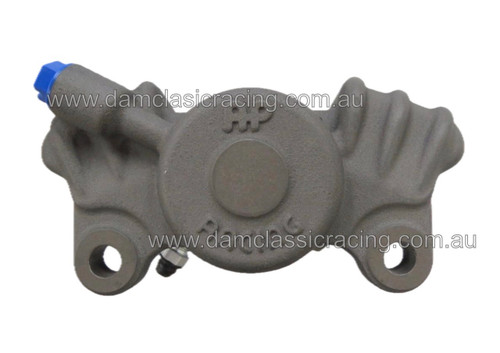

The AP Racing 2 piston classic CP2195 caliper is used for solo bikes, classic machines and sidecar. It is manufactured with an aluminium alloy body and 41.3mm pistons.
You may also like to consider the AP Racing Adjustable Master Cylinder 3125-4 when using a single disc or the AP Racing Adjustable Master Cylinder 3125-2 when using twin discs fitted with the CP2195 Calipers
The dimesions of the CP2195 are the same as the 2696 caliper but are left and right handed for brake hose connection CP2696 Dimensional Drawing is available as a Free Download
| Piston Diameter mm | 41.3 x 2 |
| Total Piston Area cm² | 26.8 |
| Disc Diameter Max mm | 304 |
| Disc Thickness mm | 6.4 |
| Weight Kg | 0.9 |
| Hydraulic Threads | 3/8 x 24UNF |
| Mounting Centres - mm | 89 |
| Offset - mm | 19.1 |
| Mounting Hole Diameter - mm | 10.2 |
| Bleed Screw Tightening Torque | 17Nm (12.5lbs/ft) |
| Spare Parts | Part Numbers |
| Seal Repair Kit | CP4518-K |
| Pistons | CP2055 x 1 / CP2195-9 x 1 |
| Pad Retainer | Split Pin - CP2696-160 x 2 |
| Bleed Screw | CP3720-182 |
