Clutch Friction Plates LAVERDA 650 &750 1966-69 [RESERVED FOR SERVICE CUSTOMERS]

$436.70 (inc GST) $397.00 (exc GST)

Clutch Friction Plates LAVERDA 650 &750 1966-69 [RESERVED FOR SERVICE CUSTOMERS]

$436.70 (inc GST) $397.00 (exc GST)
SKU:
46504000.1
Share

Product Description

GENUINE OEM CLUTCH PLATES KEPT IN STOCK ARE RESERVED FOR IN-SERVICE CUSTOMERS UNTIL FURTHER NOTICE.

--------------------------------

BE AWARE: AFTERMARKET KEVLAR CLUTCH PLATES. Aftermaket plates are often thicker than Laverda specification and cause problems with the original Laverda actuating lever binding on its support. On hydraulic clutch systems using a BREMBO PS15 Master cylinder the clutch pack has sometimes been found to make contact with the outer basket circlip on the primary drive side before the lever has completed it's full range of travel. This over-extension creates excessive pressure in the hydraulic system that may cause failure of components including fracture of the alloy hydraulic covers.

On cable operated clutch systems check that a properly adjusted handlebar cable lever pulls all the way into the bar without excessive straining of the cable. If the lever doesn't pull to the bar then look to the Clutch Pack plate thickness before changing the Actuating Lever.

---------------------------------

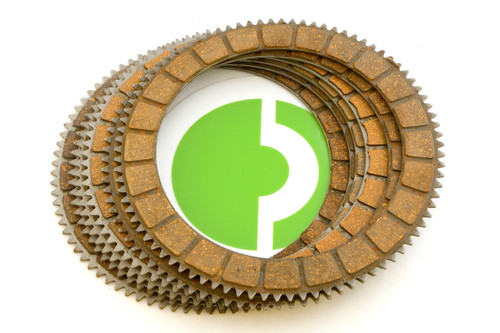

This Clutch set contains friction plates plates for Laverda 650 and 750 models 1966-1969 only.

The first model 650 and 750 Laverda GT had different clutch plates to all other 750 models. These early model clutch plates can be easily distinguished from later clutch plates by their internal diameter of 117mm. Steel plates for the 1969 GT clutch are no longer available as a separate new part.

Note: If your clutch plates measure 130mm internal diameter then purchase the later model Friction & Steel Plates Kit  or Friction Plates Only

When fitting this clutch it is advisable to check the Clutch Cush Drive Rubbers at the same time, there should be no movement between the large sprocket and the clutch drum

Most late models have M6 hex bolts installed to fix the cush drive cover plate to the clutch drum. Earlier models used 5mm diameter rivets

Remove these rivets to replace the cush drive rubbers. Grind off the tops of the rivets, use a 3mm or 4mm drill to drill out the full length of the rivet, then use a 5mm punch to gently tap them out. Take great care not to use excessive force that damages the alloy casting. Use an M6x1 Thread Tap to cut a thread in the alloy to accept M6x20 Hex Bolts and Spring Washers that replace the rivets. it is recommended for this procedure to be carried out by qualified persons using appropriate engineering equipment.

You are welcome to ship your clutch drum to us at DAM Classic Racing and we will complete this modification, fit new rubbers and return it to you with your parts order

Other Parts you may consider necessary to complete the replacement may be a Lock Tab Washer for the crank sprocket and a Primary Cover Gasket for your model.

INSTALLATION TIP

To enhance the benefits when fitting new SURFLEX Clutch Plates, it is recommended that new oil should be used .
The new friction plates should be submersed in the new engine or transmission oil for two hours prior to fitment.
This allows the clutch plate material to absorb the oil to assist with the initial start up and ongoing usage.
The other clutch components should be thoroughly inspected for wear and suitability prior to re-assembly - replace if necessary.
